Kiln Drying Machine
Industrial Kiln Drying
Industrial Kiln Drying
Systems
Chamber and progressive kilns from 10 to 500+ m³ capacity — precise, energy-efficient wood drying for sawmills, flooring producers and export operations. ISPM 15 heat treatment capable. PLC automated control.
CE Certified
30–80 °C Range
10–500+ m³
ISPM 15 Capable
Moisture Content Targets Achievable
Green (fresh sawn)50–70%
Air dried / structural15–20%
Flooring / export grade6–9%
Kiln Drying SystemChamber & Progressive Types
System Types
Kiln Types Available
We supply three kiln system types — matched to your production volume, timber species, site layout and investment level. All are PLC-automated with programmable drying schedules.
Most Popular

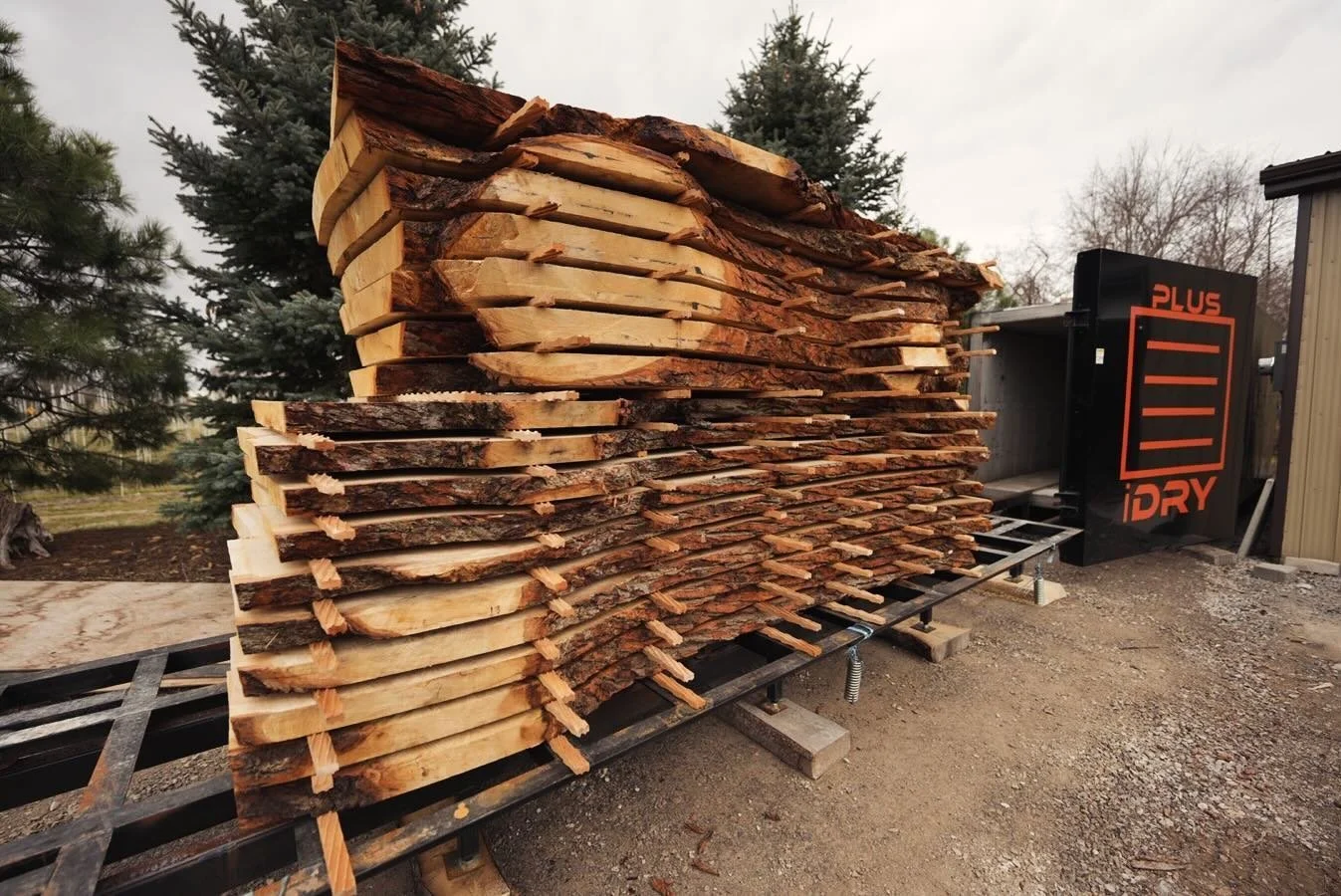

Chamber Kiln
Batch drying — loads are dried to target MC before the kiln is unloaded. Flexible for multiple species and programmes. Ideal for sawmills processing mixed timber.
Capacity10–200 m³
Temp Range30–80 °C
Drying Cycle3–21 days (species dependent)

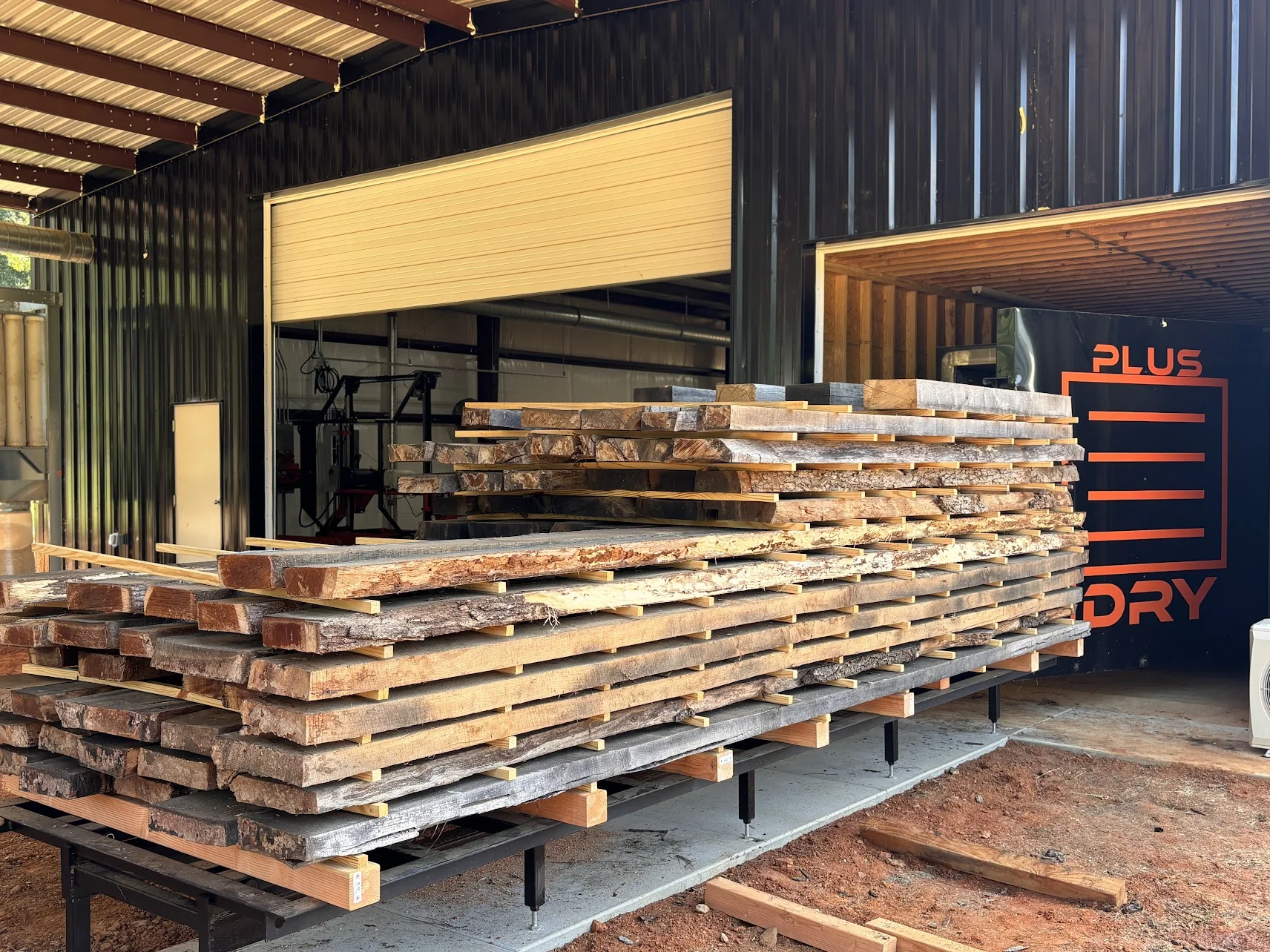

Progressive (Continuous) Kiln
Timber enters wet at one end and exits dry at the other — continuous operation for high-volume, single-species operations such as softwood sawmills and flooring manufacturers.
Capacity50–500+ m³
Temp Range40–80 °C
OperationContinuous 24/7
Fast Drying

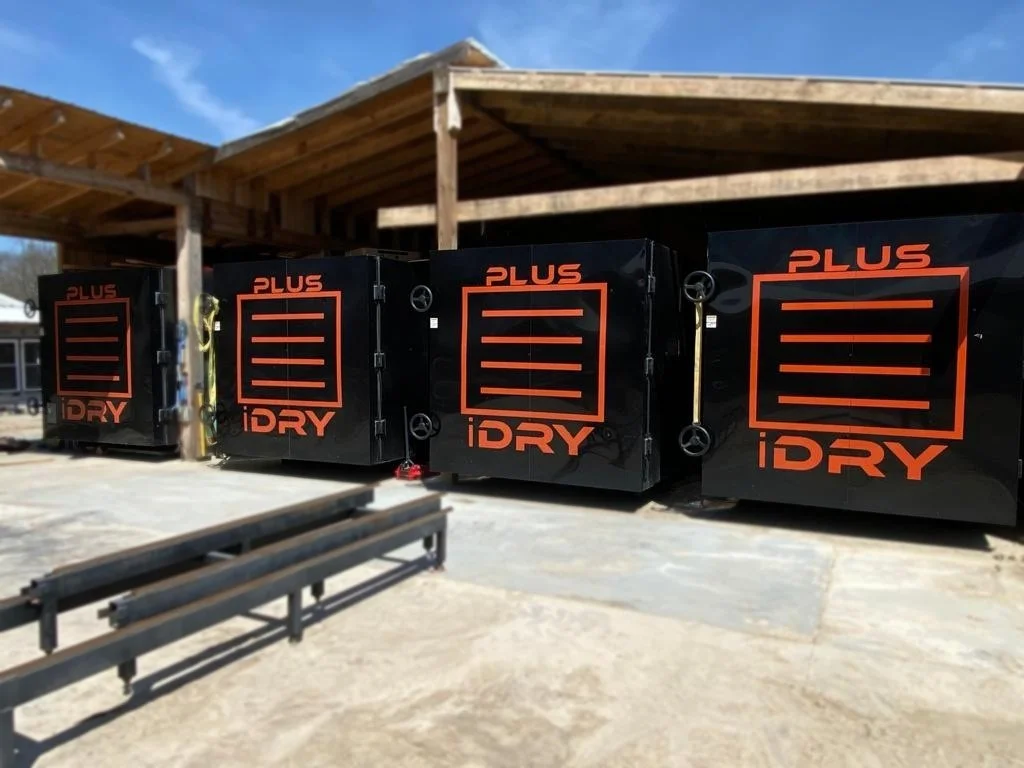

Vacuum Kiln
Ultra-fast drying under reduced pressure — ideal for thick hardwood sections, figured wood and species prone to checking. Achieves target MC in hours, not days.
Capacity5–50 m³
Speed4–72 hrs (vs weeks)
Best ForThick hardwood, Oak, Ash
Key Features
Why Our Kilns Stand Out
PLC Auto-Control with Drying Schedules
Pre-programmed species-specific drying schedules — set your target MC and the system does the rest. Remote monitoring available via mobile app.
Energy-Efficient Heat Recovery
Advanced heat exchangers and insulated panel construction reduce energy consumption by up to 30% compared to conventional kiln designs.
ISPM 15 Heat Treatment Mode
Dedicated HT programme achieves 56°C at core temperature for 30 minutes — fully compliant with international phytosanitary export requirements.
Precision Humidity & Temp Control
Multi-point moisture sensors and automated spray/vent systems maintain uniform conditions throughout the charge — minimising degrade and checking.
Specifications
Technical Specification Range
Chamber Kiln — Standard Range
Capacity10–500+ m³
Temperature Range30–80 °C
Target MC6–25% (programmable)
Air CirculationReversible fans, 2–4 m/s
Control SystemSiemens / Delta PLC
MonitoringRemote via PC / mobile app
ConstructionInsulated aluminium panels
Heat SourceSteam, hot water, electric, biomass
CertificationCE, ISO 9001, ISPM 15 capable
Lead Time10–20 weeks ex-factory
Warranty12 months structure & controls
ISPM 15 Heat Treatment Capability
All our chamber kilns can be configured with an ISPM 15 heat treatment programme — enabling you to produce export-compliant heat-treated timber and pallet wood without additional equipment investment.
56°C Core Temp for 30 min
IPPC Mark Certified
International Export Compliant
01
Load the Kiln
Stack timber on kiln trolleys with spacer sticks for air circulation — load into the chamber
02
Activate HT Programme
Select the ISPM 15 heat treatment schedule on the PLC — the kiln ramps to target temperature
03
Core Temp Achieved & Held
PLC records and holds 56°C core temperature for 30 continuous minutes — treatment verified
04
Certificate Generated
System prints a treatment record for customs and phytosanitary certificate documentation
Source a Kiln System
Request a Kiln Drying Quote
Tell us your timber species, volume, target MC and site details — our team will recommend the right kiln type and capacity with a full CIF price within 24 hours.
- Site survey and kiln layout planning support
- Factory inspection before shipment
- On-site installation and commissioning
- Operator training and drying schedule programming
- 12-month warranty on structure and control systems
